Radiator + Hose Kit for Hyundai Elantra HD, i30 i30cw 1.6L G4FC 2.0L G4GC Auto

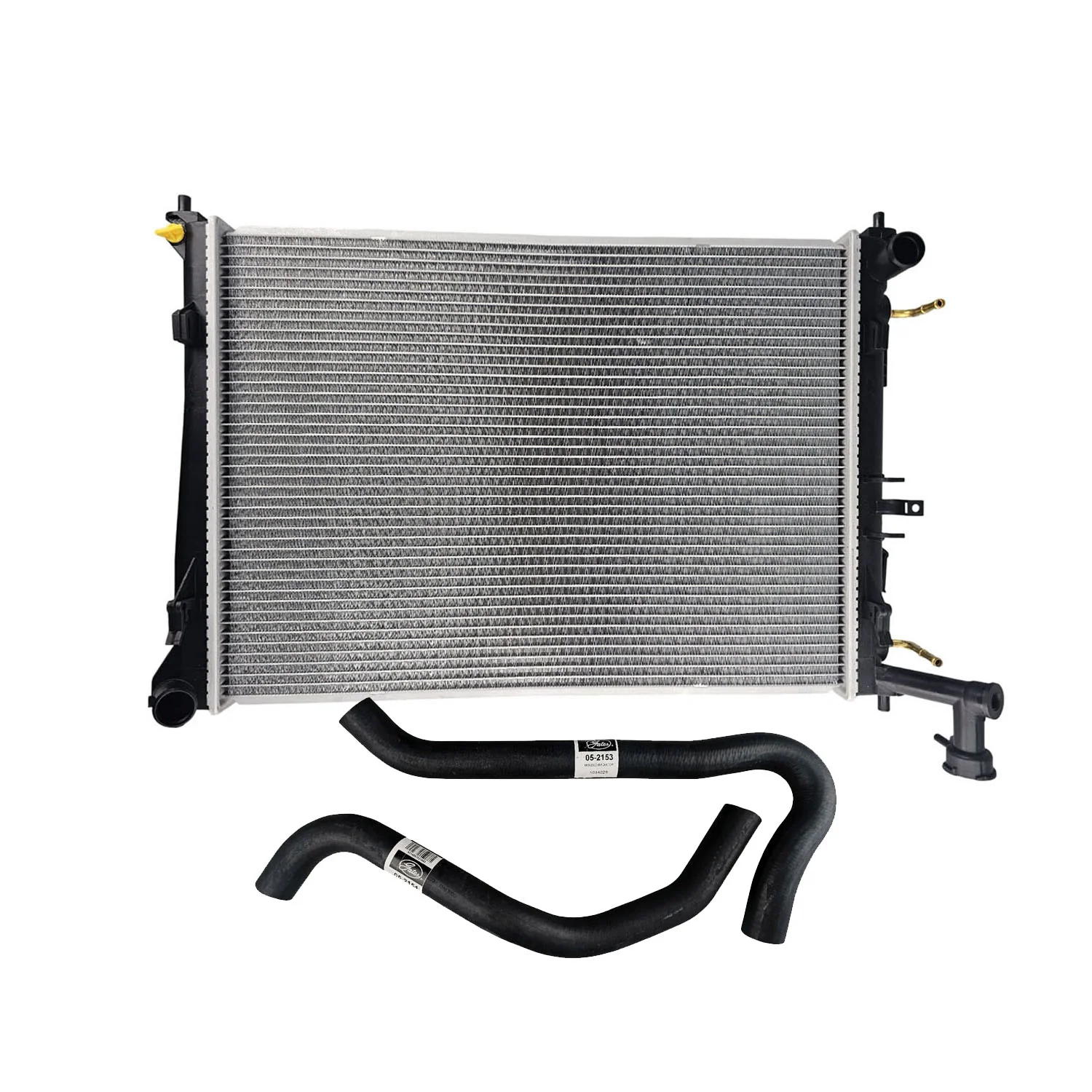

One Brand New Radiator + Hose Kit
***This suits Auto Transmission | Please Check OE Before Fitting***
Basco radiators deliver peak automotive cooling performance through advanced manufacturing, including nitrogen-protected aluminium brazing and high-frequency welded tube machines, ensuring durability and efficiency, with every unit certified to ISO9001:2008 and IATF16949:2009 global quality standards. Combined with genuine Gates coolant hoses, this makes a complete, high-quality radiator repair solution built for dependable fitment, long service life, and trusted cooling system performance.
Vehicle Fitment
- Hyundai Elantra HD (10/2006~05/2011) 2.0L Petrol G4GC
- Hyundai i30 FD (10/2007~04/2012) 2.0L Petrol G4GC
- Hyundai i30cw FD (03/2009~01/2013) 2.0L Petrol G4GC
We strongly advise using the Australian Number Plate lookup to confirm fitment.
Sizing and Specifications
- Upper Hose Length: 705 mm
- Upper Inner Diameter 1: 32.8 mm
- Upper Inner Diameter 2: 32.8 mm
- Lower Hose Length: 615 mm
- Lower Inner Diameter 1: 31.8 mm
- Lower Inner Diameter 2: 31.8 mm
- Bottom Hose Inlet: 33 mm
- Core Height: 438 mm
- Core Thickness: 16 mm
- Core Width: 600 mm
- Top Hose Inlet: 33 mm
- Trans Cooler Pipe, Centre to Centre: 335 mm
What's Included

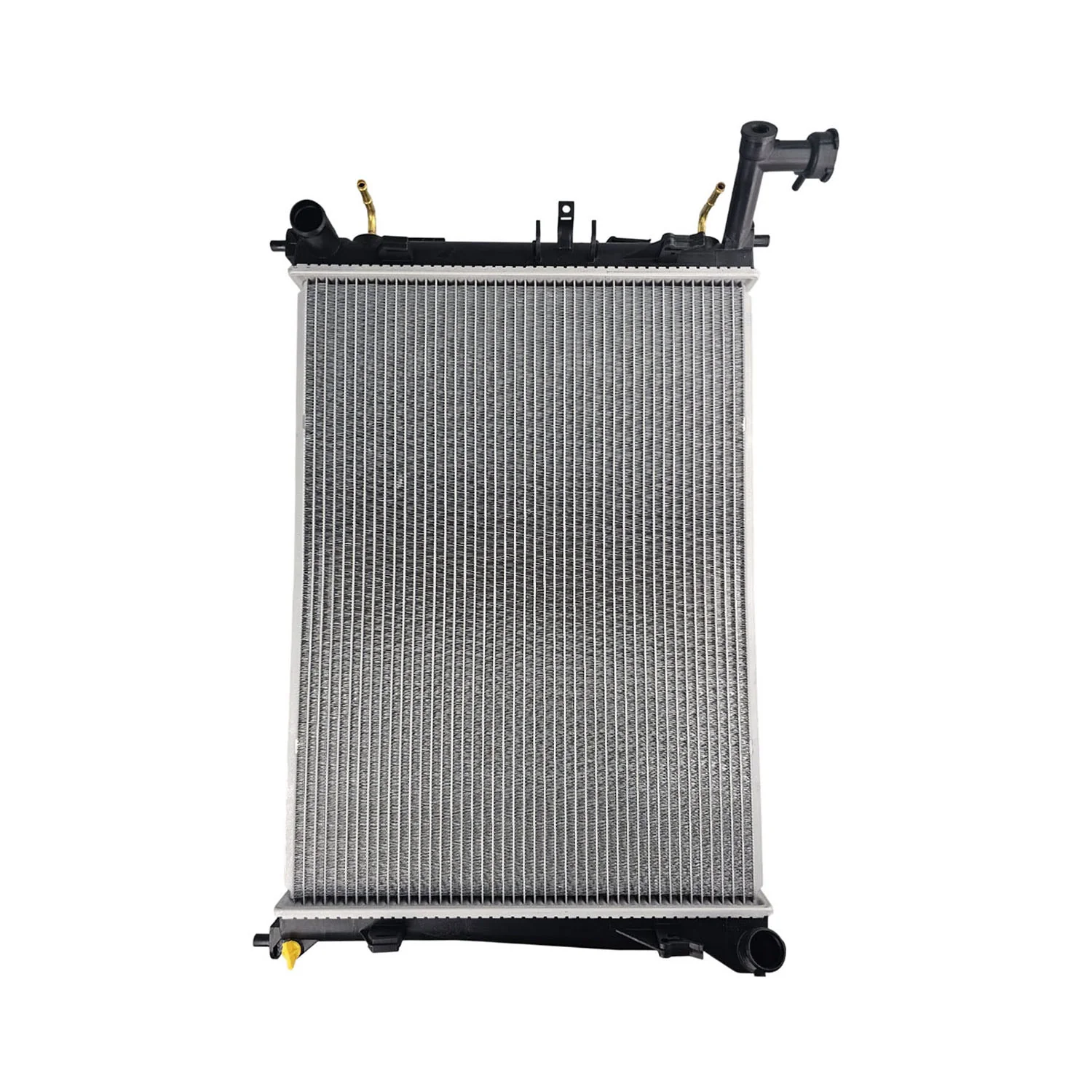

- 1 x Basco Radiator - (RAD1110)

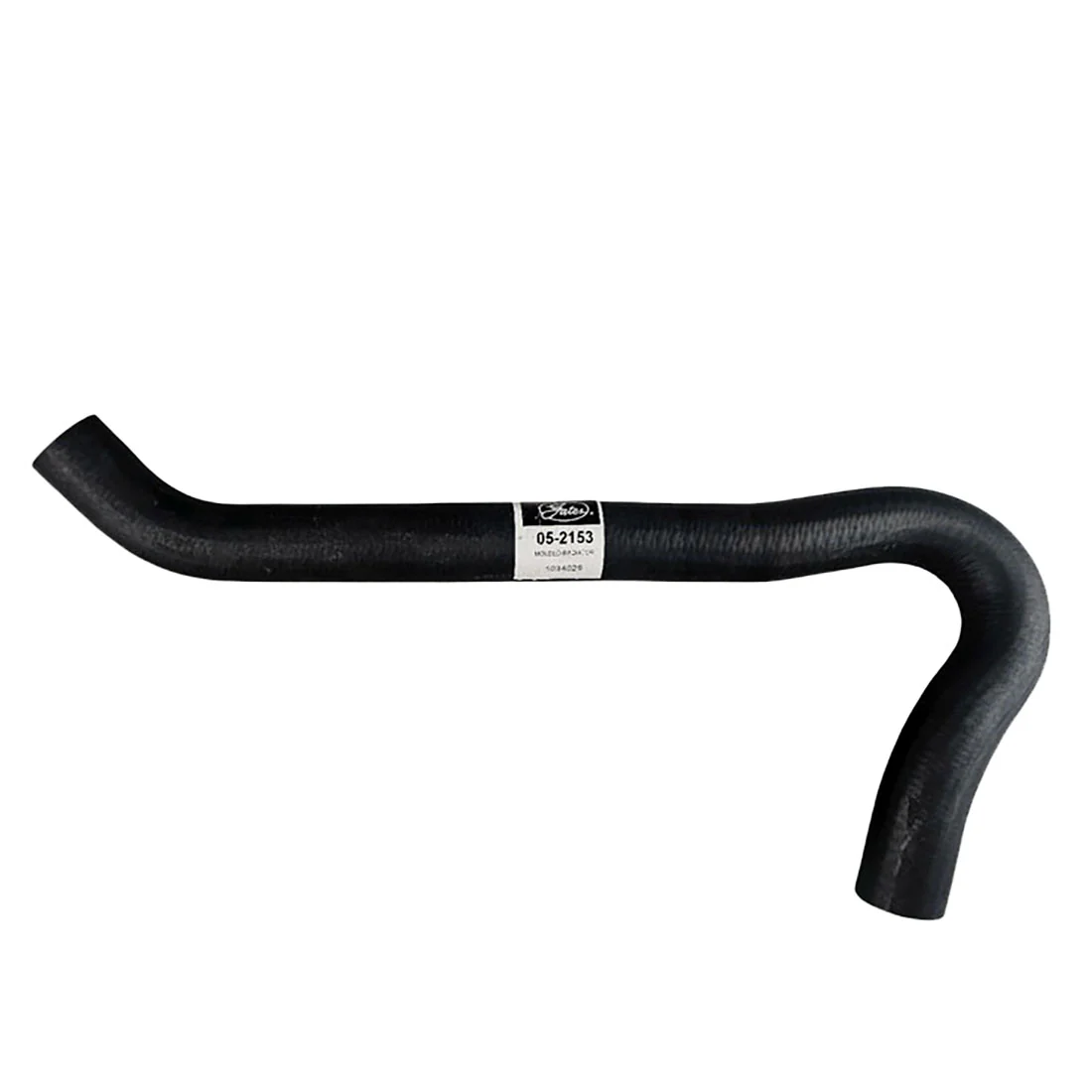

- 1 x Gates Upper Coolant Hose - (05-2153)

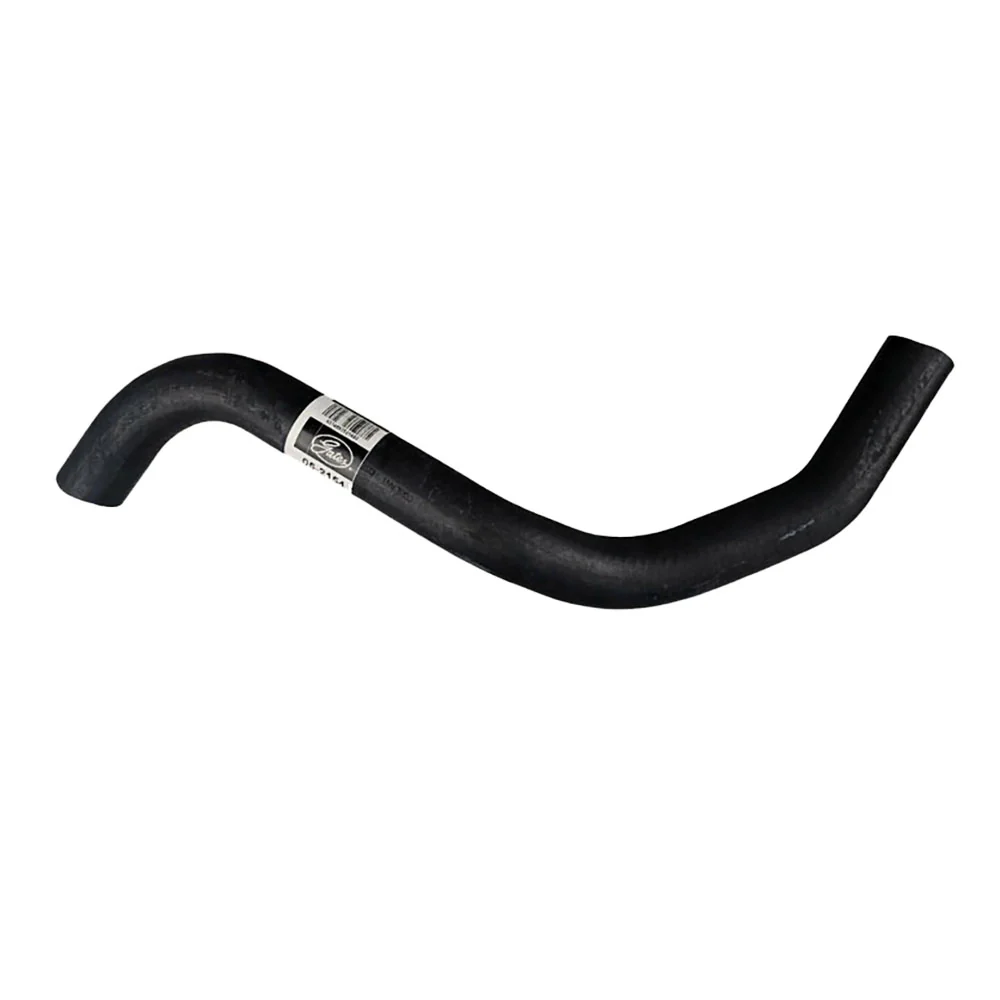

- 1 x Gates Lower Coolant Hose - (05-2154)
12 month/20,000km warranty and support from our team.
Description
One Brand New Radiator + Hose Kit
***This suits Auto Transmission | Please Check OE Before Fitting***
Basco radiators deliver peak automotive cooling performance through advanced manufacturing, including nitrogen-protected aluminium brazing and high-frequency welded tube machines, ensuring durability and efficiency, with every unit certified to ISO9001:2008 and IATF16949:2009 global quality standards. Combined with genuine Gates coolant hoses, this makes a complete, high-quality radiator repair solution built for dependable fitment, long service life, and trusted cooling system performance.
Vehicle Fitment
- Hyundai Elantra HD (10/2006~05/2011) 2.0L Petrol G4GC
- Hyundai i30 FD (10/2007~04/2012) 2.0L Petrol G4GC
- Hyundai i30cw FD (03/2009~01/2013) 2.0L Petrol G4GC
We strongly advise using the Australian Number Plate lookup to confirm fitment.
Sizing and Specifications
- Upper Hose Length: 705 mm
- Upper Inner Diameter 1: 32.8 mm
- Upper Inner Diameter 2: 32.8 mm
- Lower Hose Length: 615 mm
- Lower Inner Diameter 1: 31.8 mm
- Lower Inner Diameter 2: 31.8 mm
- Bottom Hose Inlet: 33 mm
- Core Height: 438 mm
- Core Thickness: 16 mm
- Core Width: 600 mm
- Top Hose Inlet: 33 mm
- Trans Cooler Pipe, Centre to Centre: 335 mm
What's Included
- 1 x Basco Radiator - (RAD1110)
- 1 x Gates Upper Coolant Hose - (05-2153)
- 1 x Gates Lower Coolant Hose - (05-2154)
12 month/20,000km warranty and support from our team.
