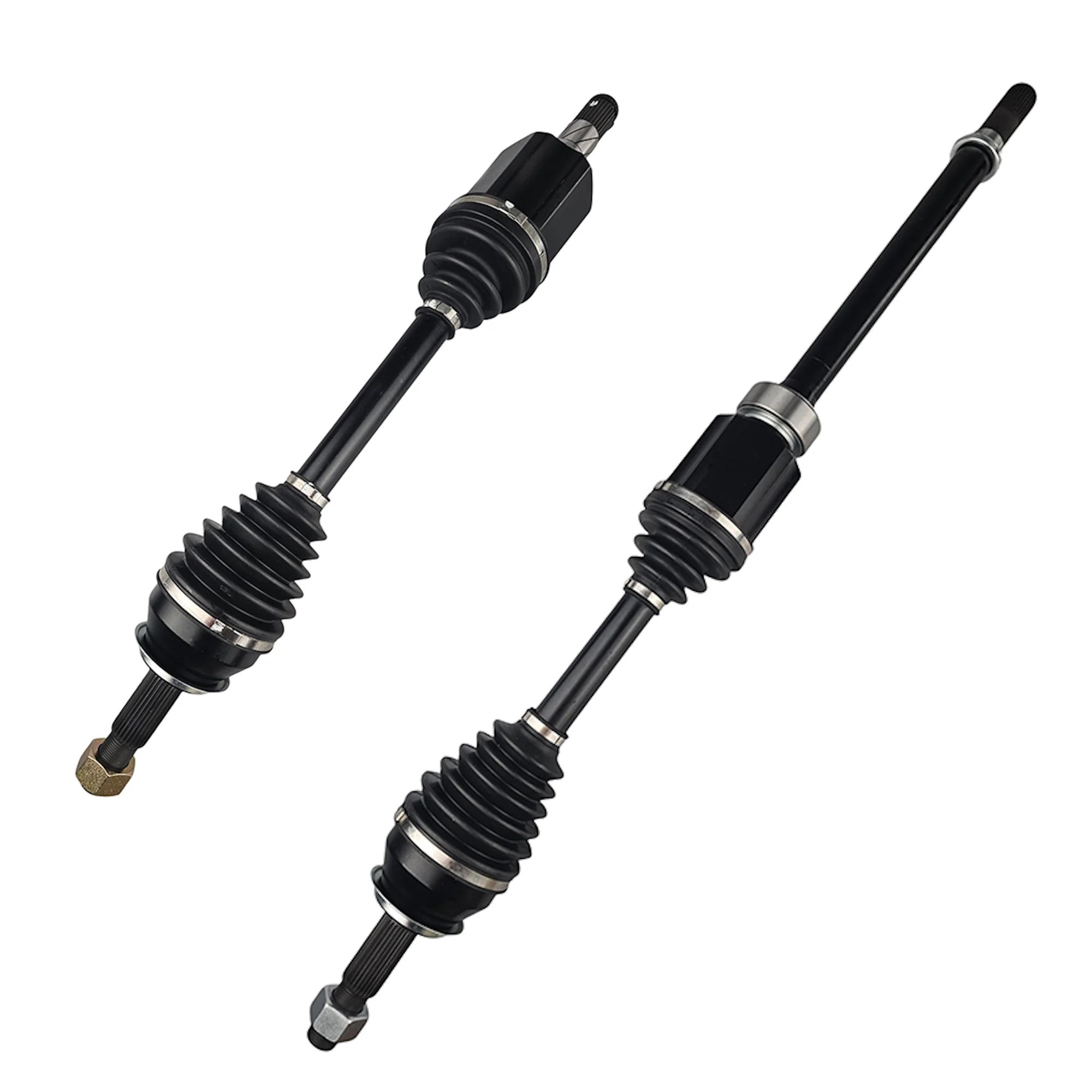

PAIR Front CV Axle Drive Shaft for Nissan Qashqai J11 1.6L FWD CVT 2014-2017

CV Axle Drive Shaft - Pair Front Left and Right Hand Side CVT FWD

Pair front left and right side, for Qashqai J11 FDAJ11 1.6L R9M FWD CVT only

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Nissan Qashqai J11 FDAJ11 1.6L R9M 16V DOHC Turbo I/C CVT FWD (07/2014 - 11/2017)
  Includes Sub-models TL, TS

Sizing and Specifications

Left CV Shaft

• Length (Compressed): 667mm
• Spline Count - Outer/Wheel Side: 29T
• Spline Count - Inner/Diff Side: 29T
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball
• Inner Joint Seal ID: 39mm
• Hub Nut Style: M24 x 1.5

Right CV Shaft

• Length (Compressed): 970mm
• Spline Count - Outer/Wheel Side: 29T
• Spline Count - Inner/Diff Side: 29T
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball
• Inner Joint Seal ID: 33mm
• Extension Shaft Length From Outside of Bearing: 427mm
• Hub Nut Style: M24 x 1.5



What's Included

• 2 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
